Installing with the Site Manager

Now that you’ve installed BVC 5 using the “Setup.exe” file, the next step is to create your first store.

BVC 5 comes packaged with a BVC 5 Site Manager utility that easily allows you to create new a new store, delete a store or modify an existing store.

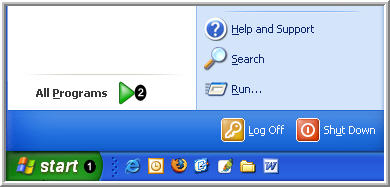

The first step is to select your Windows Start Menu (as pictured below). Your start menu may vary in look depending on the version of Windows you’re currently running.


Next, select "All Programs" and locate BV Software > BVC 5 > BVC 5 Site Manager.

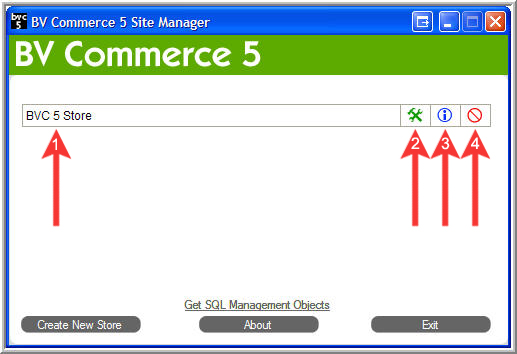

In the picture below, you can see that the site manager not only allows you to create a new store, but also the ability to manage existing stores.

Site Manager
Arrow 1 Displays the name of your store.
Arrow 2 Directs you to the admin login page for this store.
Arrow 3 Displays more detailed information regarding the selected store.
Arrow 4 Deletes the selected store.
Create New Store Allows you to create a new store.
Get SQL Management Objects "SQL Management Objects" are files required by the BV Commerce 5 installer. If you do not already have SQL Server 2005 or the SQL Server 2005 client tools installed on your computer, you will likely need to download these files.
About Displays the site managers version information.
Exit Exits the site manager.

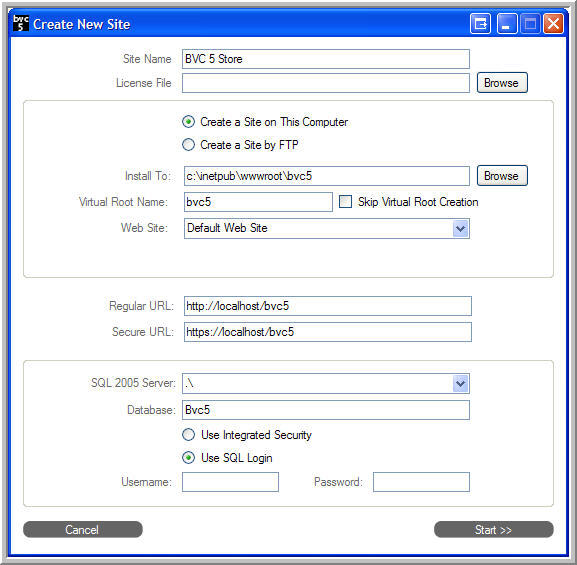

Our first step for creating a new store is to click the “Create New Store” button. The BVC 5 Site Manager is capable of detecting missing components essential to creating a new store. Depending on what options are selected on the “Create New Site” screen, you may be presented with warning messages informing you of missing components.

We’ll discuss each of the items on this screen below in detail.

Create New Site
Site Name The Site Name defines the name of your store. This site name will appear in the “Site Manager” list of existing sites.
License File The License File provided with the software is necessary to create your store. Use the “browse” button to navigate to this License File and select it.
  • Create a Site on this Computer
  • Create a Site by FTP
 These two options define where you’d like to create your new site. You can either create a new site on your local computer or on a server via FTP.

The FTP information required can be obtained from your hosting company.

If the option to “Create a Site by FTP” is selected, you do not need SQL Server 2005 installed on your local computer.

Upon using the FTP option, you will likely need to contact your hosting company to configure the site on the server.

1. Make sure the site is set up as a Virtual Directory in IIS.
2. Make sure the site is set to use ASP.NET 2.0 and not 1.1.
3. Make sure the site is configured as an "application" within IIS.
4. Set the proper file permissions as listed in the "Manual Installation Instructions".
Install To To change the location for the new web site files that will be copied, enter it in the text box shown or click the Browse button to navigate to the target folder.

The default location for new web sites in IIS is "c:\inetpub\YOURSTORENAME".

The BVC 5 Site Manager will copy the complete file structure from the base installation folder to the new target development folder.
Virtual Root Name Typically on local development systems the web site is created as a virtual directory under the Default Web Site in IIS. Advanced users have the option to skip this step and configure IIS manually if needed.
Web Site The Web Root Name will be set to the destination folder name. If the destination folder contains spaces, replace spaces with underline characters, or remove the spaces altogether.
  • Regular URL
  • Secure URL
 This will define the URL’s for your store.

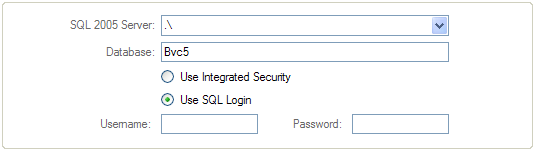

SQL 2005 Server This dropdown list will contain the SQL 2005 Servers installed on your local machine. Select the one which you’d like to install your BVC 5 Database.
Database Define a name for your database.
  • Use Integrated Security
  • Use SQL Login
 Using Integrated Security or the SQL Login will vary depending on how you installed SQL Server 2005. This option is specified during your SQL Server 2005 installation. It is recommended that you choose SQL Servers Mixed Mode Authentication when installing SQL Server 2005.
  • Username
  • Password
 These two fields require your database username and password. To install the required items, the SQL Server user account entered must have permissions to execute stored procedures. You may use the System Administrator account (“sa”) if needed. This user should have full access to the database though it is not best practice to use the “sa” user account with a live store.

The next step is to click the “Start Button”. The Site manager will then create your site and database for you provided the information you entered on the previous screen was correct.

SQL 2005 Assistance

If you’re having issues with installing or configuring SQL Server 2005 or SQL 2005 Express, we strongly recommend visiting Microsoft’s SQL Server Web Site.

http://www.microsoft.com/sql/default.mspx

You can select the edition you’re currently using under the “Editions” menu. You’ll find that each edition has its own set of helpful documentation on installing and configuring SQL Server 2005.

Site Manager Database Connection Help

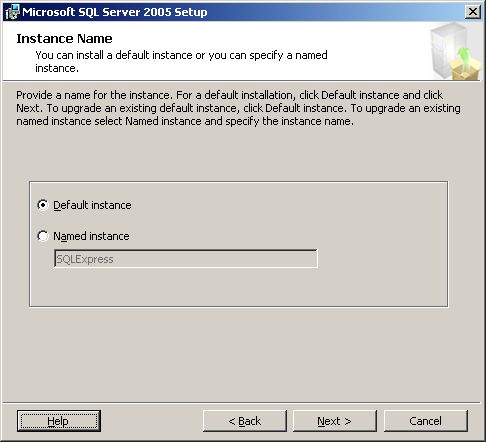

The first option for connecting to your installed copy of SQL Server 2005 is entering in the named instance of SQL Server. The screenshot below displays the step in the SQL Server 2005 installation wizard that allows you to specify the Instance Name.

You can manually specify an instance name or use the default instance name, which is typically your computers name.

The site managers “SQL 2005 Server” option is looking for this instance name. Typically all installing instances of SQL Server will appear in this drop down list. If it does not, you may enter it manually like the example below:

"computer_name\instance_name" (if you’ve defined a custom instance name) or "computer_name"

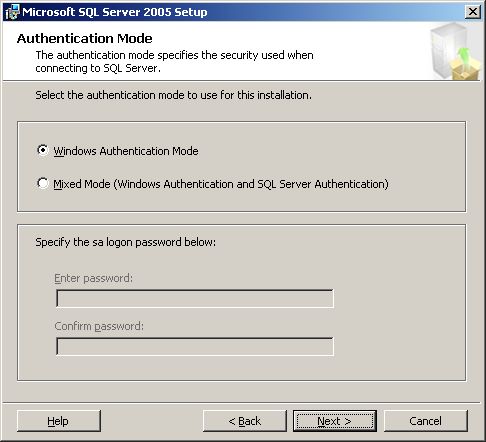

Mixed Mode Authentication

When installing SQL Server, make sure you set the “Authentication Mode” to “Mixed Mode”.



Upon making this selection, the installation wizard will ask you to provide a password for the “sa” or system administrator account.

This username and password combination should be used in the Site Managers “username” and “password” option when creating a new site.
